German strings

A case for yet another string type

Plan

• Intro and performance promises
• Implementation details
• Some use cases
• Name context

We love strings...

... and we have some already!

• <const> char* - a C string, a NULL-terminated char array
• std::basic_string<> - owning mutable string, convertible to a C string, usually has SSO and takes up 32 bytes
• std::basic_string_view<> - a view into some string data, may not be null terminated
• Your favorite custom implementation

We love strings...

So why would we need any more?

• 50-100% faster equality and comparison operations
• 2x smaller memory footprint for the string object

Anatomy of std::string

class string
{
    size_t size;
    size_t capacity;
    char* data;
};

Anatomy of std::string

A bit closer to the truth

// gcc
struct string
{
    char* ptr;
    size_t size;
    union {
        size_t capacity;
        char buf[16];
    };
};

// msvc
struct string
{
    union {
        char* ptr;
        char buf[16];
    };
    size_t size;
    size_t capacity;
}

// clang
union string
{
    struct {
        size_t capacity;
        size_t size;
        char* ptr;
    } large;

    struct {
        unsigned char is_large:1;
        unsigned char size:7;
        char buf[sizeof(large) - 1];
    } small;
}

Anatomy of std::string

A common thing - SSO and a 32 byte size

Pictured here: libstdc++(GCC)

Anatomy of std::string

• Always owning the memory
• Mutable
• Local for 15 to 23 byte-long strings
• Null-terminated

• std::string_view for non-owning strings
• Just a pointer and a size, 16 bytes

What's lacking?

If we are not bound by the standard and have a specific use case in mind, we can optimize for:

• Equality and ordering operations
• Avoiding copies where possible
• Fast small strings
• std::string is usually good at the last one

What's lacking?

Is it not optimal now?

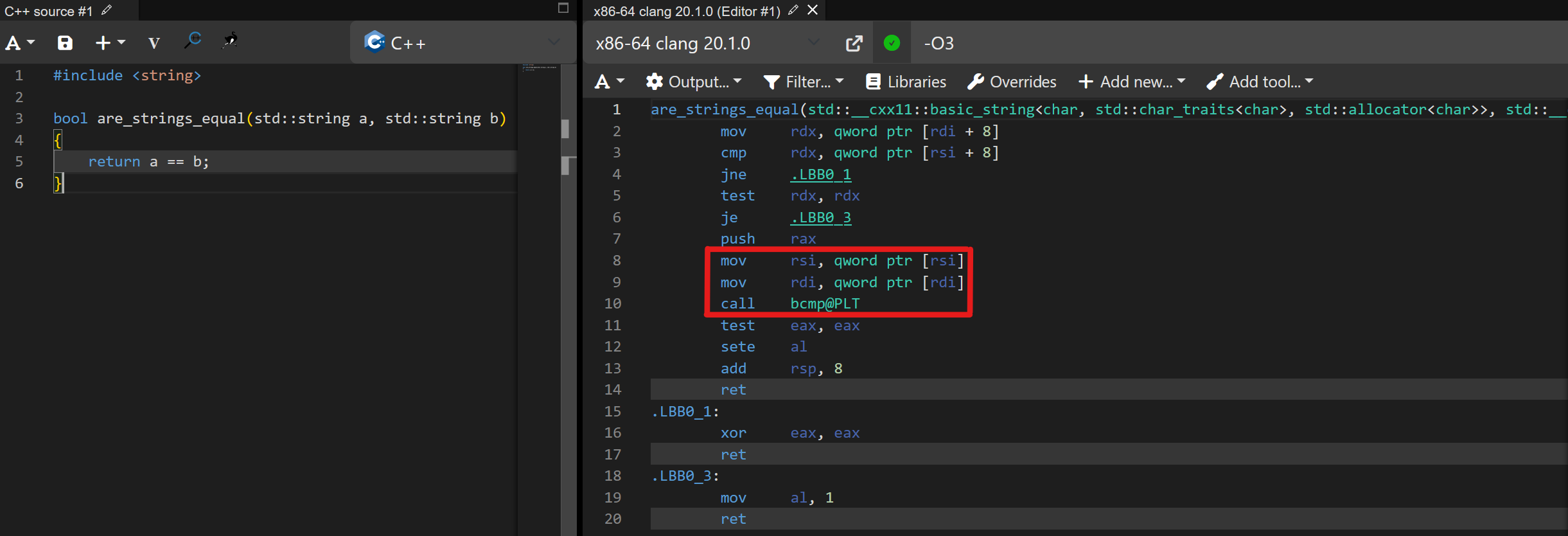

• Obligatory Godbolt screenshot slide

What's lacking?

What's lacking?

Memory latency!

• Obligatory CPU cache and memory latency slide

What's lacking?

What is an appropriate type here?

std::vector<StringType> GlobalStringTable;

void addFromANetworkRequest(const NetworkRequest& request)
{
    GlobalStringTable.push_back(request.string());
}

void addFromAMmap(const MmapRegion& region)
{
    GlobalStringTable.push_back(region.string());
}

void addStatics()
{
    GlobalStringTable.push_back("static_string");
}

What's lacking?

std::string is large - 32 bytes

• Suffers under the default calling conventions
• Takes up precious cache space

What can we do differently?

• Always have a prefix locally
• Sometimes own the data

• Immutable
• 12-byte SSO
• 4 GBs size limit
• No null termination

What can we do differently?

Sometimes owning the data - string classes

Why have separate string and string_view types at all?

By tagging the pointer with 2 bits of data we can assign each string to a class

• temporary - usual owning string
• persistent - always valid string
• transient - caller defined lifetime

Sometimes owning the data - string classes

Pros

• Avoids unnecessary copies
• Clear runtime values for lifetimes

Cons

• A new footgun
• Relies on the canonical pointer form and unused bits

Prefix

• Possibly avoid the cache miss on comparison
• Neatly becomes the prefix for the SSO string

• We need to touch the string memory when we are creating a view to it

Show me the code!

struct german_string
{
    std::uint32_t size;
    union {
        char small[12];
        struct {
            std::uint32_t prefix;
            char* data;
        } large;
    };
};

• Clean translation of the diagram
• Does not work!

Show me the code!

struct german_string
{
    std::uint64_t state[2];
};

Show me the actual code!

Equality

bool equals(const german_string& other) const
{
    if (_state[0] != other._state[0])
    {
        return false;
    }

    // If we are small, it's guaranteed that that the other one is as well
    if (static_cast<std::uint32_t>(_state[0]) <= 12)
    {
        return _state[1] == other._state[1];
    }
    const char* my_ptr = reinterpret_cast<const char*>(_state[1] & ~PTR_TAG_MASK);
    const char* other_ptr = reinterpret_cast<const char*>(other._state[1] & ~PTR_TAG_MASK);
    return std::memcmp(my_ptr, other_ptr, _get_size()) == 0;
}

Show me the actual code!

Compare

int compare(const german_string& other) const
{
    const uint32_t min_size = std::min(_get_size(), other._get_size());
    const uint32_t min_or_prefix_size = std::min(min_size, sizeof(uint32_t));
    const int prefix_cmp = prefix_memcmp(_get_prefix(), other._get_prefix(), min_or_prefix_size);
    if (min_or_prefix_size == min_size || prefix_cmp != 0)
    {
        return prefix_cmp != 0 ? prefix_cmp : (_get_size() - other._get_size());
    }
    const int result = std::memcmp(
        _get_maybe_small_ptr() + 4,
        other._get_maybe_small_ptr() + 4,
        min_size - min_or_prefix_size
    );
    return result != 0 ? result : (_get_size() - other._get_size());
}

Show me the actual code!

Bit magic!

int prefix_memcmp(std::uint32_t a, std::uint32_t b, int n)
{
    std::uint32_t diff = a ^ b;
    std::uint32_t mask = (std::uint32_t)((0xFFFFFFFFull << (n * 8)) >> 32);
    diff &= mask;

    int first_diff = std::countr_zero(diff) / 8;
    std::uint8_t byte_a = ((std::uint64_t)a >> (first_diff * 8)) & 0xFF;
    std::uint8_t byte_b = ((std::uint64_t)b >> (first_diff * 8)) & 0xFF;
    return (int)byte_a - (int)byte_b;
}

• Around 2x faster than std::memcmp!

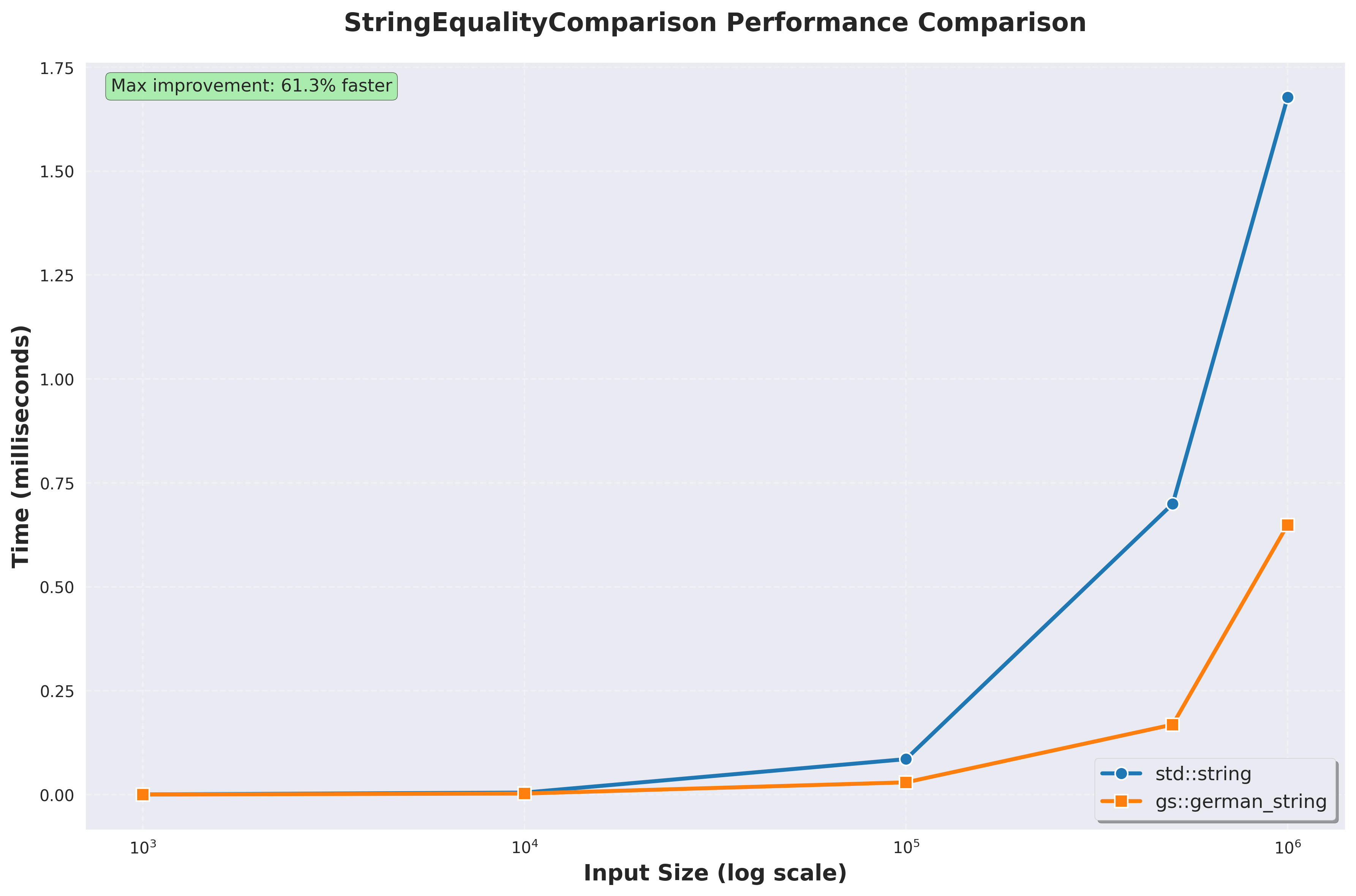

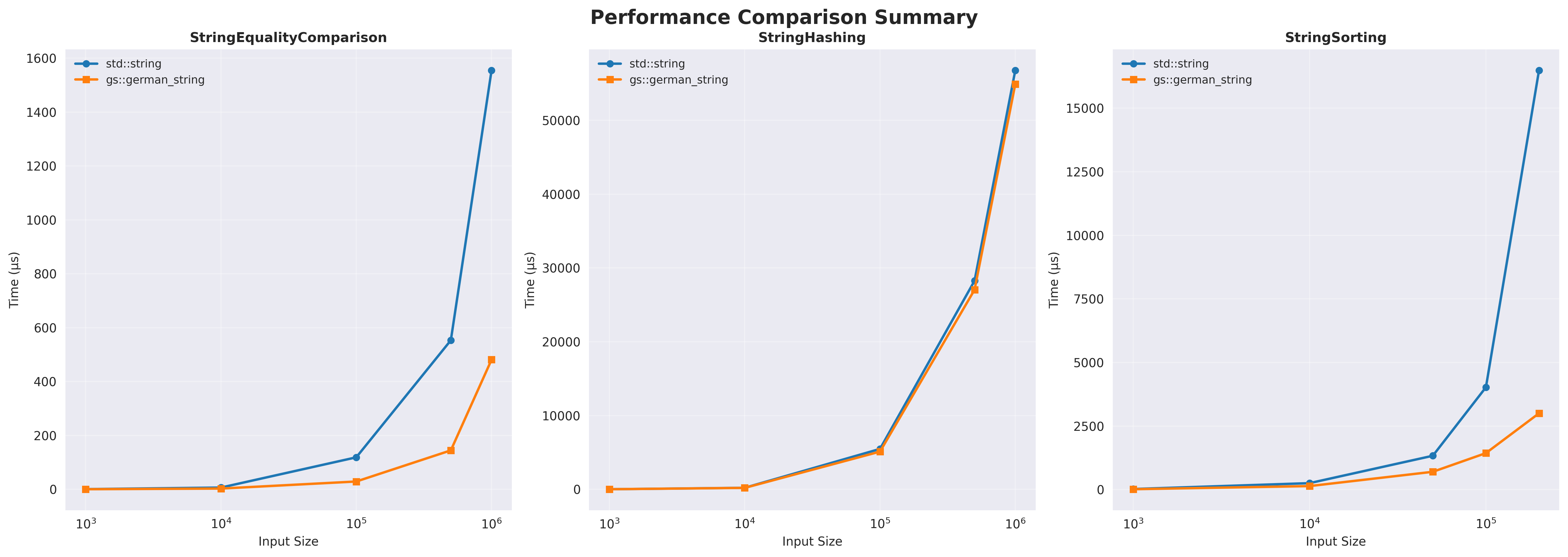

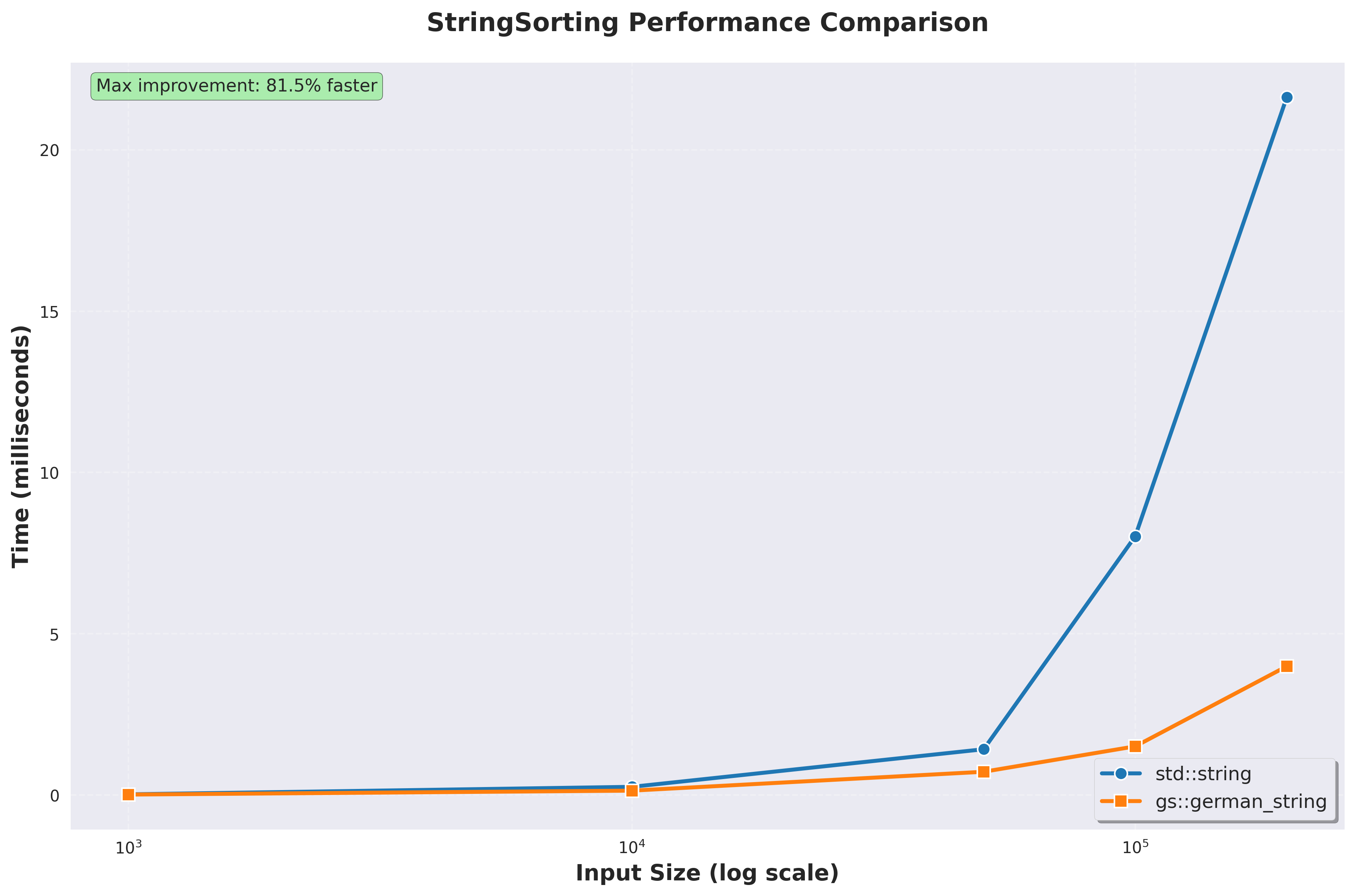

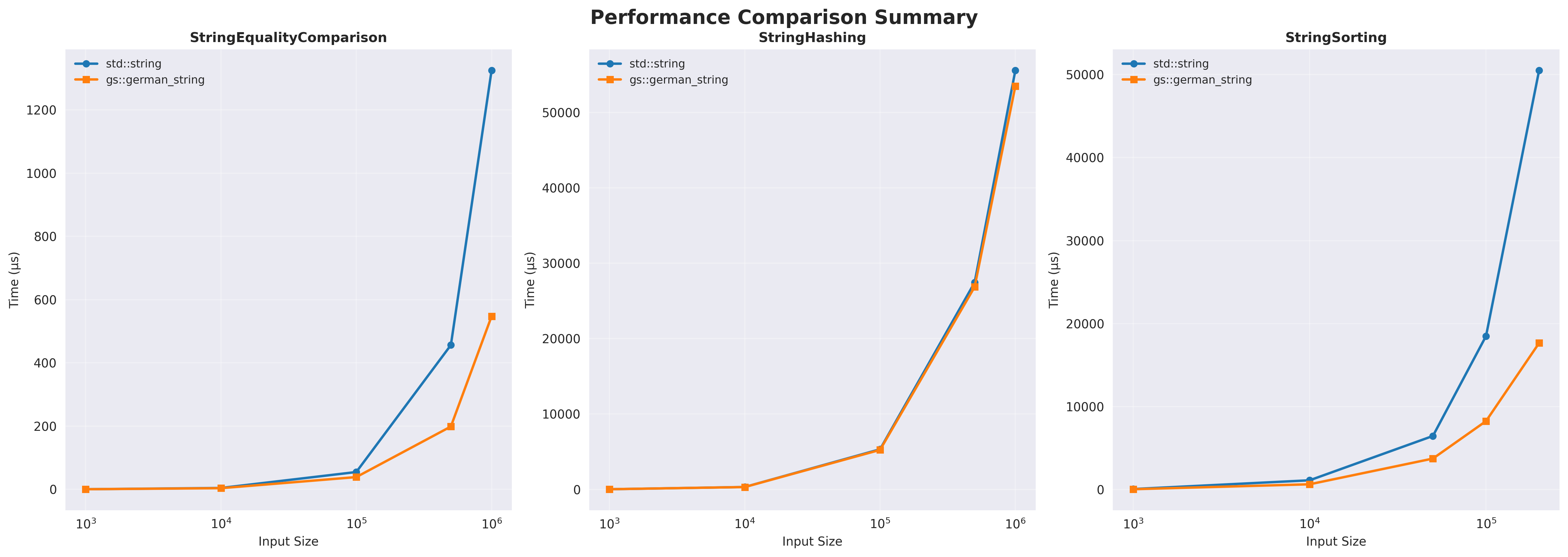

Looking at benchmarks

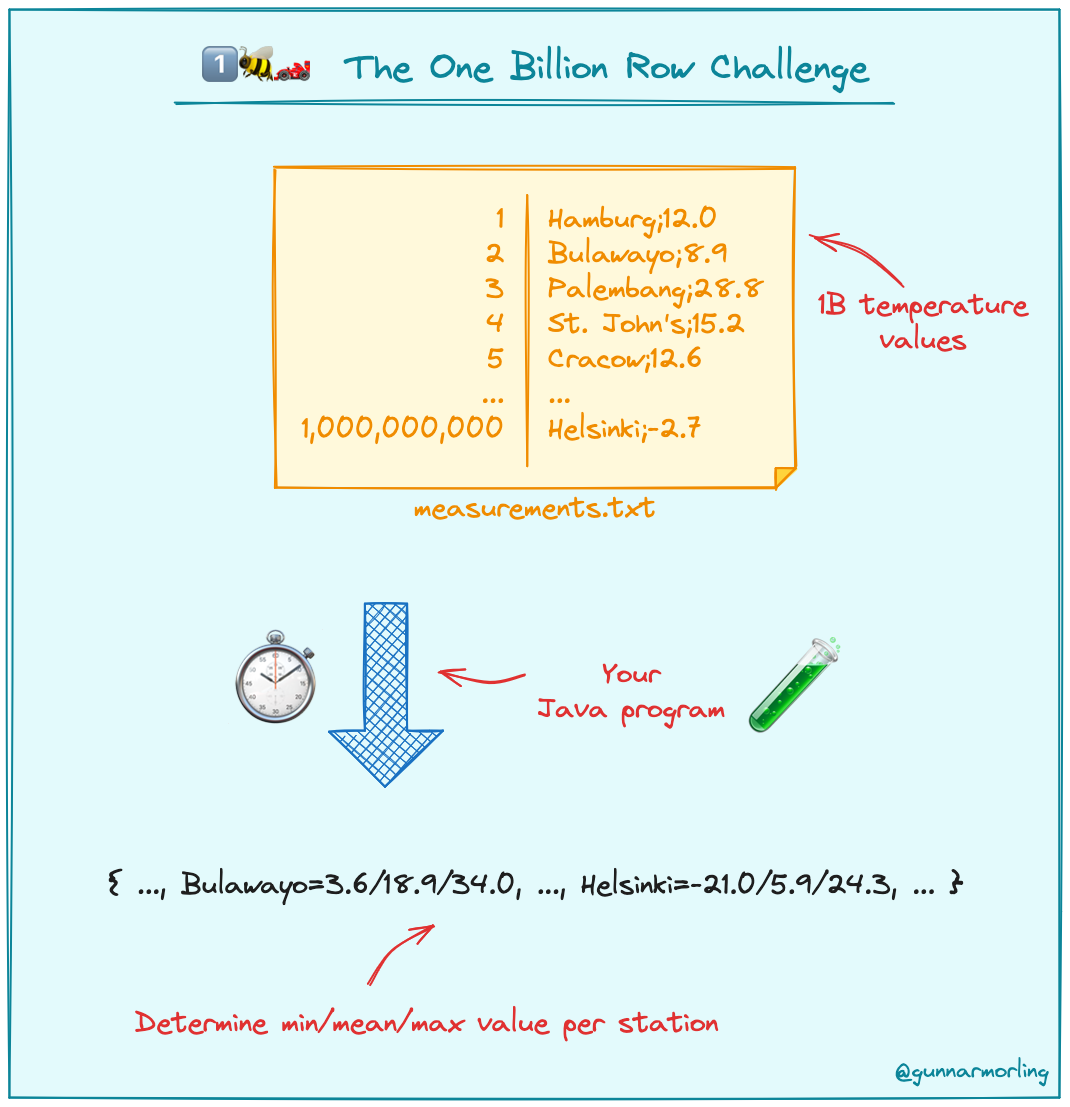

Applications - 1BRC

Applications - 1BRC

The plan:

• Find a simple open source C++ implementation
• Replace all std::string with gs::german_string
• PROFIT!

• Optimizing code to run 87x faster by Šimon Tóth

Applications - 1BRC

struct Record { int cnt; float min, max, sum; }
std::unordered_map<StringType, Record> process_input(std::span<const char> data)
{
    std::unordered_map<StringType, Record> db;
    StringType station, value;
    while (getline(data, station, ';') && getline(data, value, '\n'))
    {
        float fp_value = stof(value);
        auto it = db.find(station);
        if (it == db.end())
        {
            db.emplace(station, Record{1, fp_value, fp_value, fp_value});
            continue;
        }
        update_record(it->second, fp_value);
    }
    return db;
}

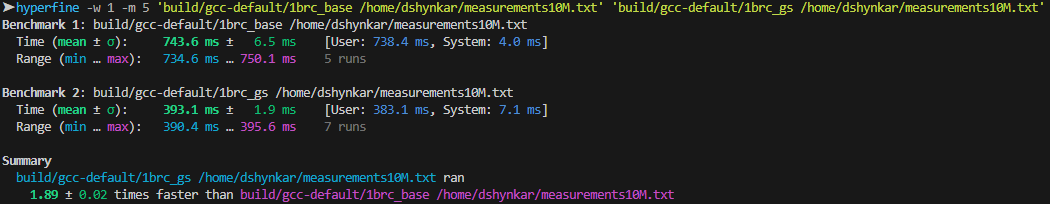

Applications - 1BRC

•
• But wait...

Applications - 1BRC

Applying the same thing to the optimized code

• We are ~10% slower...
• Hashing-heavy, small-key set
• A conditional on loading the data pointer hurts

Applications - Toy LSM-tree KV-store

• Think HBase, LevelDB, RocksDB, etc. - but smaller and simpler
• Memory-mapped storage, single level of compaction

Applications - Toy LSM-tree KV-store

template <typename StringType>
class LSMTree
{
    std::map<StringType, StringType> memtable_;
    std::vector<std::unique_ptr<SSTable<StringType>>> sstables_;
    std::string base_dir_;
    int next_sstable_id_;
};

template <typename StringType>
class SSTable
{
private:
    std::string filename_;
    mutable std::vector<std::pair<StringType, StringType>> data_cache_; // Cache for parsed data (sorted by key)
    mutable bool cache_loaded_;
    mutable std::unique_ptr<MappedFile> mapped_file_; // Persistent mapping
};

Applications - Toy LSM-tree KV-store

std::optional<StringType> LSMTree::get(const StringType &key)
{
    auto result = memtable_.get(key); // std::map look-up
    if (result.has_value())
    {
        return result;
    }

    for (auto& sstable : std::views::reverse(sstables_))
    {
        result = sstable->get(key); // std::lower_bound
        if (result.has_value())
        {
            return result;
        }
    }
    return std::nullopt;
}

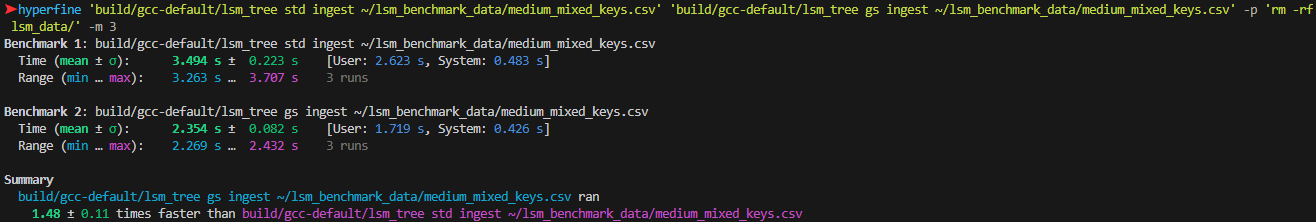

Applications - Toy LSM-tree KV-store

• A lot of string comparisons happen in both write and read paths
• We can avoid copying data in addition to <=> performance boost

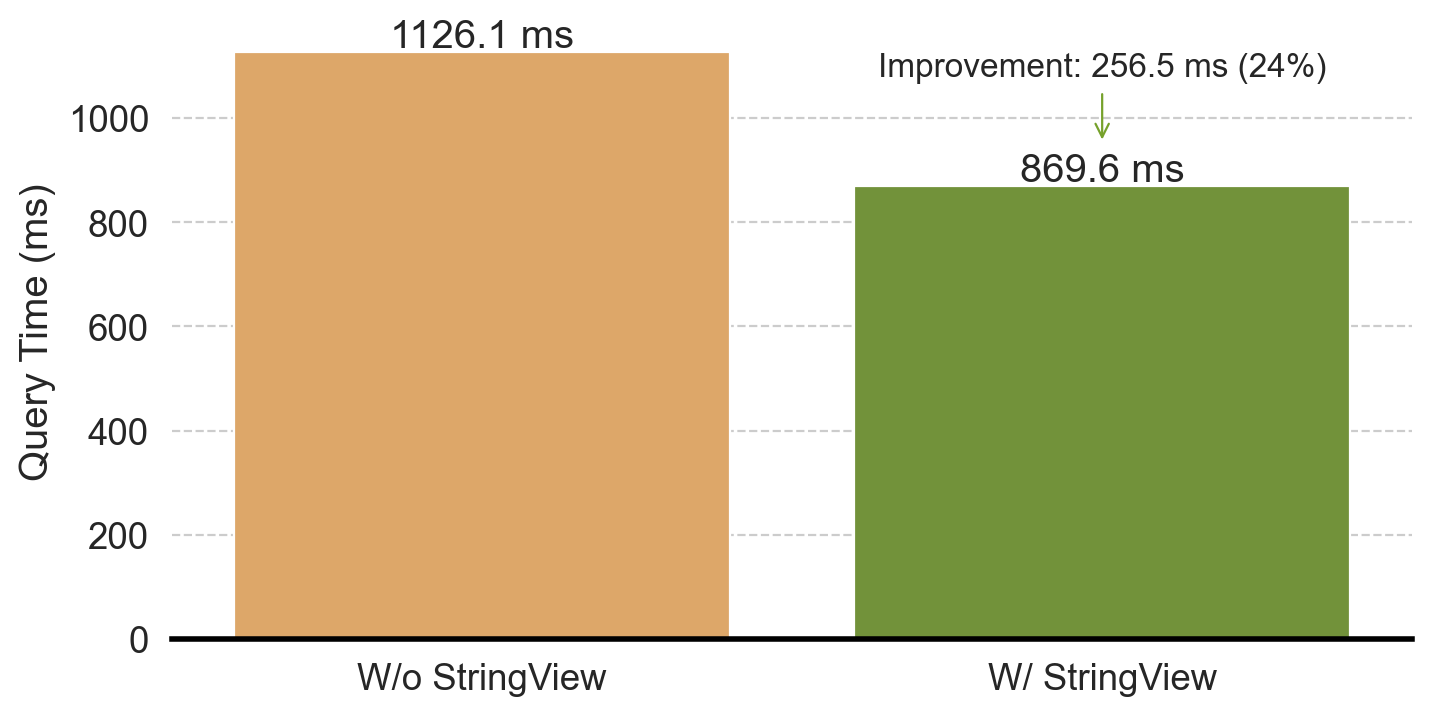

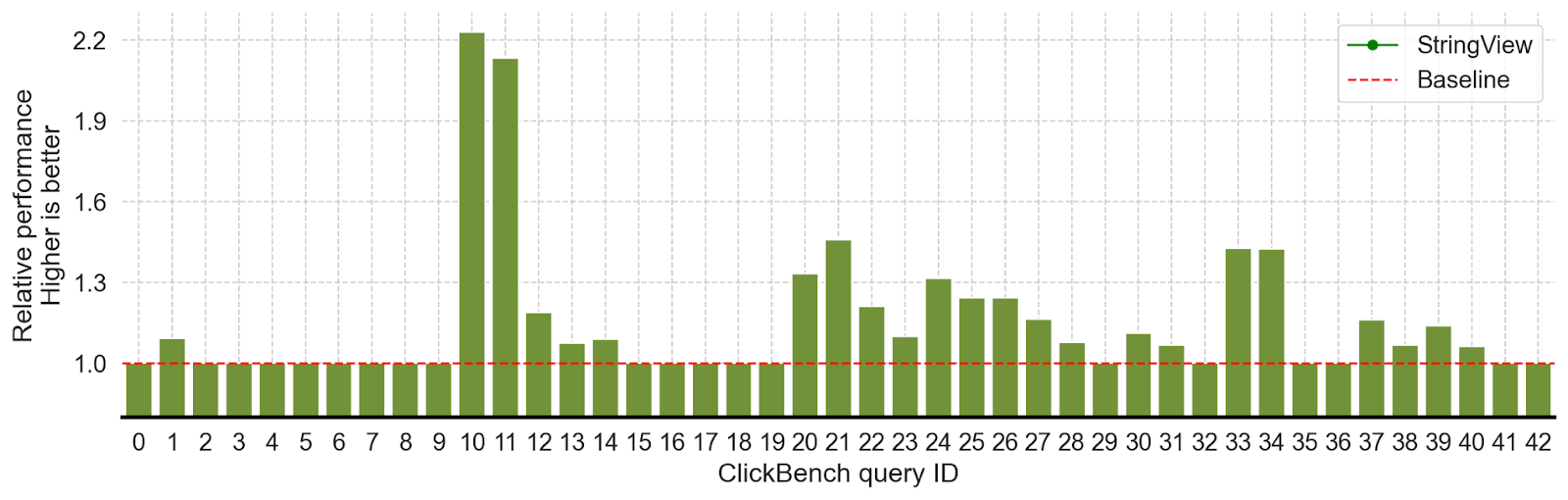

Applications - Real World

Applications - Real World

Why German though?

Sources and further info

If you want to learn more about German strings, check out these resources:

• https://cedardb.com/blog/german_strings/
• https://cedardb.com/blog/strings_deep_dive/
• https://datafusion.apache.org/blog/2024/09/13/string-view-german-style-strings-part-1/
• https://datafusion.apache.org/blog/2024/09/13/string-view-german-style-strings-part-2/
• https://www.tunglevo.com/note/an-optimization-thats-impossible-in-rust/
• https://the-mikedavis.github.io/posts/german-string-optimizations-in-spellbook/
• https://15721.courses.cs.cmu.edu/spring2024/

https://github.com/dmitr101/german_strings
